Banda BEAT 3000

$165.00 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

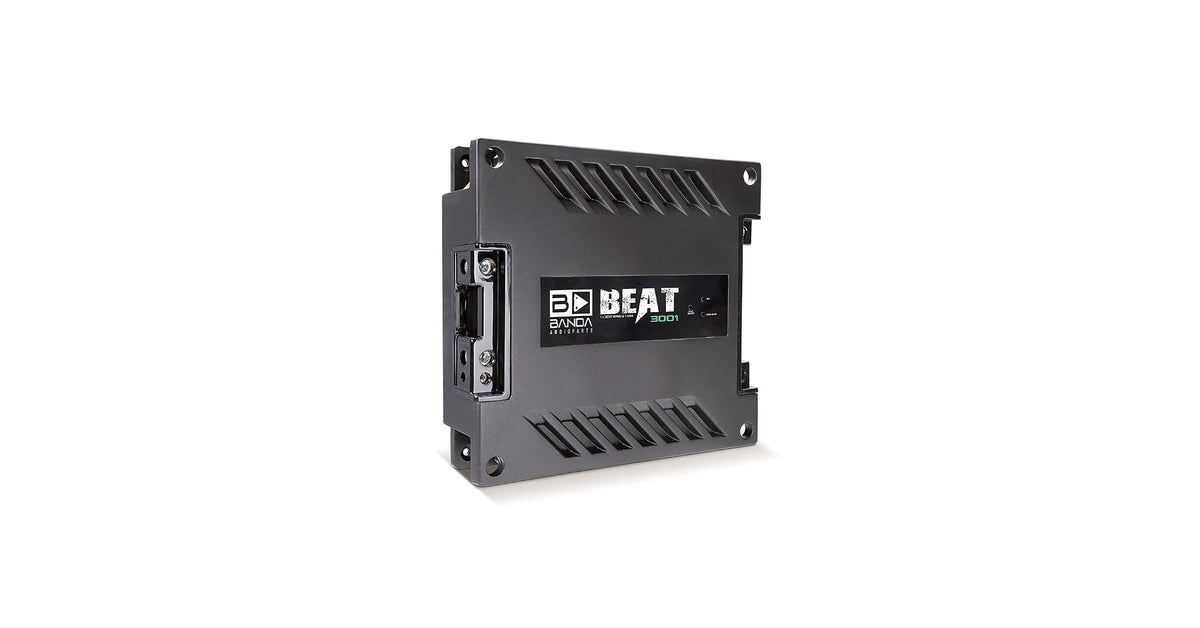

The Banda BEAT 3001 is a 3,000-watt RMS full-range Class D monoblock car audio amplifier.

Key Specifications (BEAT 3001 - 1 Ohm Model)

Power Output (12.6V): 3,000 WRMS @ 1 Ohm

Power Output (14.4V): 3,900 WRMS @ 1 Ohm / 2,900 WRMS @ 2 Ohms

Class Type: Class D (High efficiency up to 71%-78%)

Frequency Response: 20Hz to 20kHz (-3dB)

Total Harmonic Distortion (THD+Noise): < 1%

Signal-to-Noise Ratio (SNR): > 80dB

Input Voltage Range: 9V to 15V

Input Sensitivity: 110mV to 4V

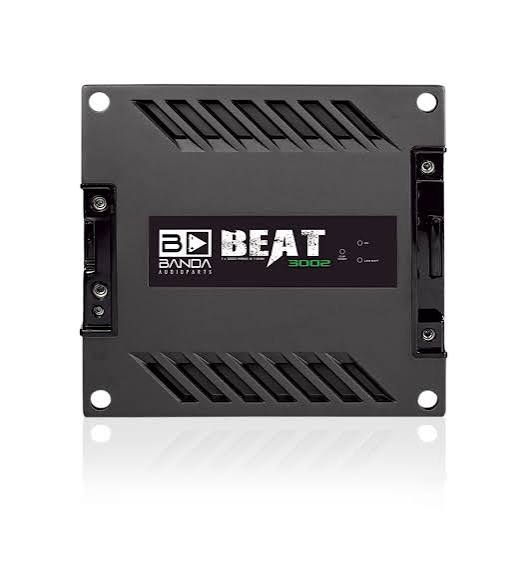

El amplificador Banda BEAT 3002 de Banda Audioparts es un monoblock compacto Clase D de 1 canal diseñado para entregar 3000 Watts RMS a 2 ohms.

Especificaciones principales

Potencia a 12.6V: 3000 W RMS (a 2 ohms)

Potencia a 14.4V: 3500 W RMS (a 2 ohms)

Potencia a 4 ohms: 2150 W RMS (12.6V) / 2600 W RMS (14.4V)

Respuesta de frecuencia: Full-range de 18 Hz a 20 kHz (-3dB)

Eficiencia: 72% a 2 ohms

Fusible recomendado: 150 A

Calibre de cable de corriente: 4 AWG (mínimo recomendado

Crossover & Adjustments

High-Pass Filter (HPF / Subsonic): 20Hz to 80Hz @ 12dB/octave (Linkwitz-Riley)

Low-Pass Filter (LPF / Crossover): 80Hz to 20kHz @ 12dB/octave (Linkwitz-Riley)

LED Diagnostics: Blue (Power On), Red (Clipping/Short/Thermal Protection), Yellow (Low Battery Voltage)

Physical & Electrical Requirements

Recommended Fuse: 150 A (External / In-line fuse required)

Current Draw (Music): 180 A

Power Wire Gauge: Minimum 4 AWG (21mm²)

Dimensions: ~2.2 x 8.4 x 9.7 inches (54mm x 209mm x 243mm)

Weight: ~7.6 lbs (3.5 k
