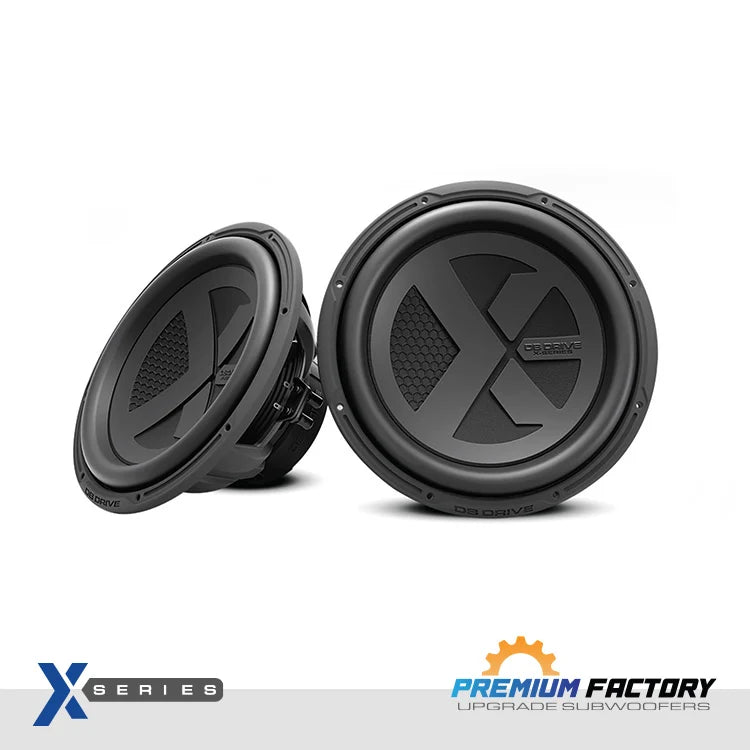

The DB Drive X-W12D4 is a 12-inch dual 4-ohm voice coil subwoofer from the DB Drive X-Series.
Power Ratings
Dynamic Power Handling: 600 Watts
Nominal Power Handling (RMS): 300 Watts
Impedance: Dual 4Ω Voice Coil
Audio & Thiele-Small Parameters
Resonant Frequency (Fs): 30.3 Hz
Sound Pressure Level (SPL): 87 dB
Maximum Linear Excursion (X-max): 8.5 mm
Equivalent Air Volume (Vas): 53.1258 L
Total Quality Factor (Qts): 0.526
Electrical Quality Factor (Qes): 0.579
Mechanical Quality Factor (Qms): 5.8
Force Factor (BL): 9.962
Diaphragm/Coil Mass (Mms): 183 g
D.C. Voice Coil Resistance (Re): 2 x 4Ω
Materials & Build Features
Cone: Weather-rated IMPP (Injection-Polypropylene) cone
Surround: Rubber surround
Voice Coil: 1.5″ (38.8 mm) 4-layer voice coil
Basket: Anti-resonant stamped steel basket with radial venting
Dampening: Poly-cotton linear dampeners
Terminals: Compression speaker terminals
Magnet: Ferrite oxide magnet
