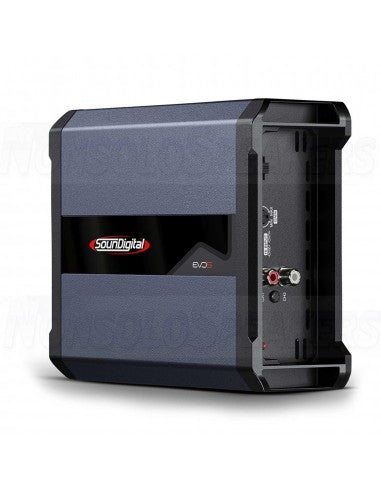

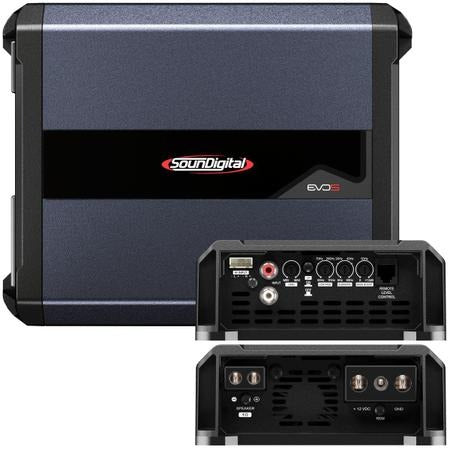

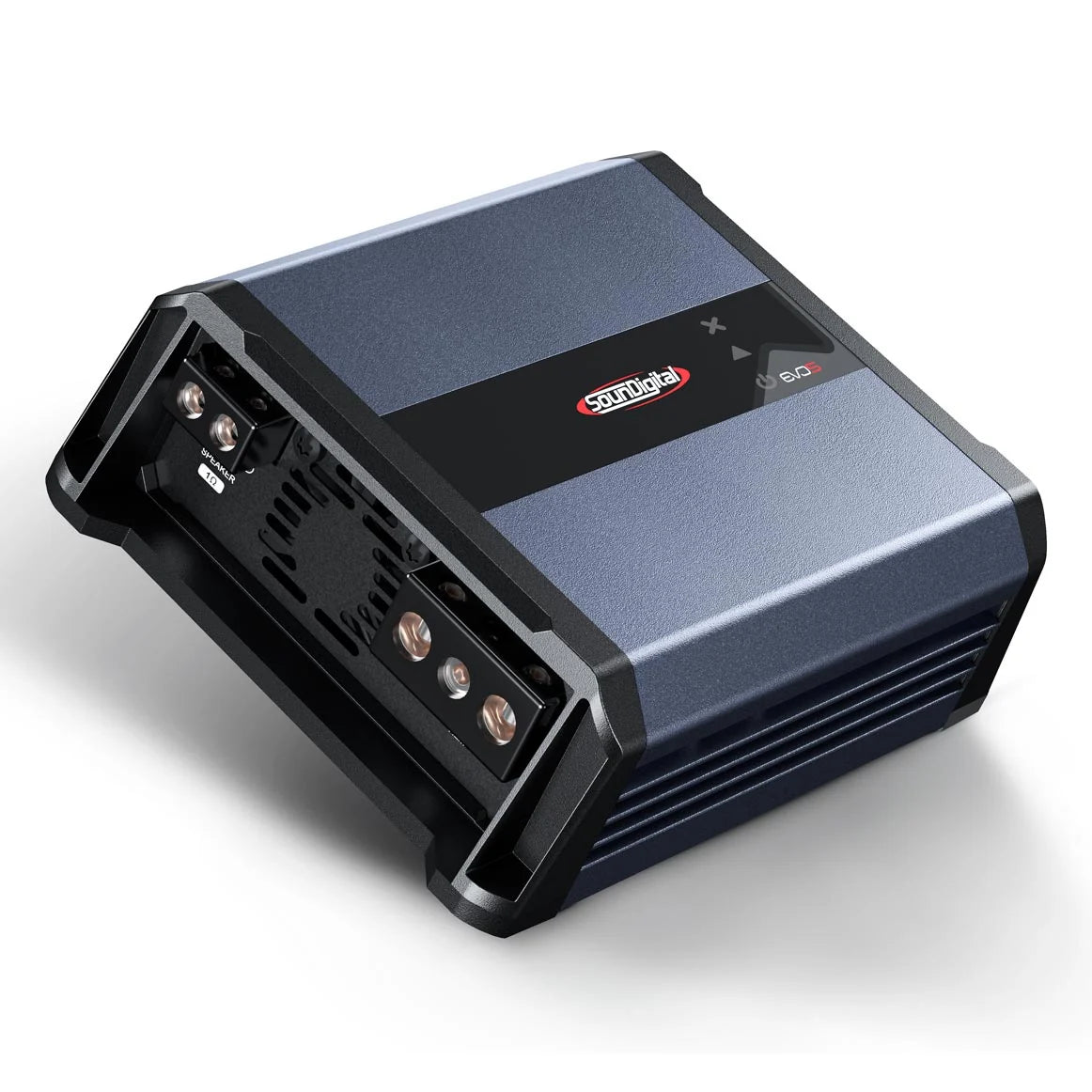

Soundigital 1200.1 Evo 5 2 ohm
Soundigital 1200.1 Evo 5 2 ohm
Precio habitual
$179.95 USD
Precio habitual
Precio de oferta
$179.95 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
The SounDigital SD1200.1 EVO 5 (2 Ohm) is a compact, high-efficiency Class D mono car audio amplifier delivering up to 1200W RMS on a single channel.
Power Output Specifications
Power @ 2Ω (12.6V): 1 x 1200 W RMS
Power @ 4Ω (12.6V): 1 x 796 W RMS (or ~792 W RMS depending on rating standard)
Power @ 1Ω: N/A (Not supported for the 2-ohm version)
Audio & Controls
Number of Channels: 1 (Monoblock)
Frequency Response (-3 dB): 5 Hz ~ 25 kHz
Subsonic Filter: 5 Hz ~ 80 Hz
Low Pass Filter: 50 Hz ~ 1 kHz
Bass Boost: 0 dB ~ 12 dB @ 50 Hz
Signal-to-Noise Ratio: 95 dB
Input Sensitivity: 0.2V ~ 2V
Electrical & Physical Specs
Operating Voltage: 9V ~ 16V
Total Efficiency: 91% (at 2Ω)
Current Draw (Music): 52A
Current Draw (Max): 105A
Recommended Fuse (Music): 60A
Power Cable: 16 mm² (5 AWG)
Dimensions: 13.6 cm x 18 cm x 5.48 cm (5.4 in x 7.1 in x 2.1 in)
Weight: 1.12 kg
