Soundigital 800.5
Soundigital 800.5
Precio habitual
$189.95 USD
Precio habitual
Precio de oferta
$189.95 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro

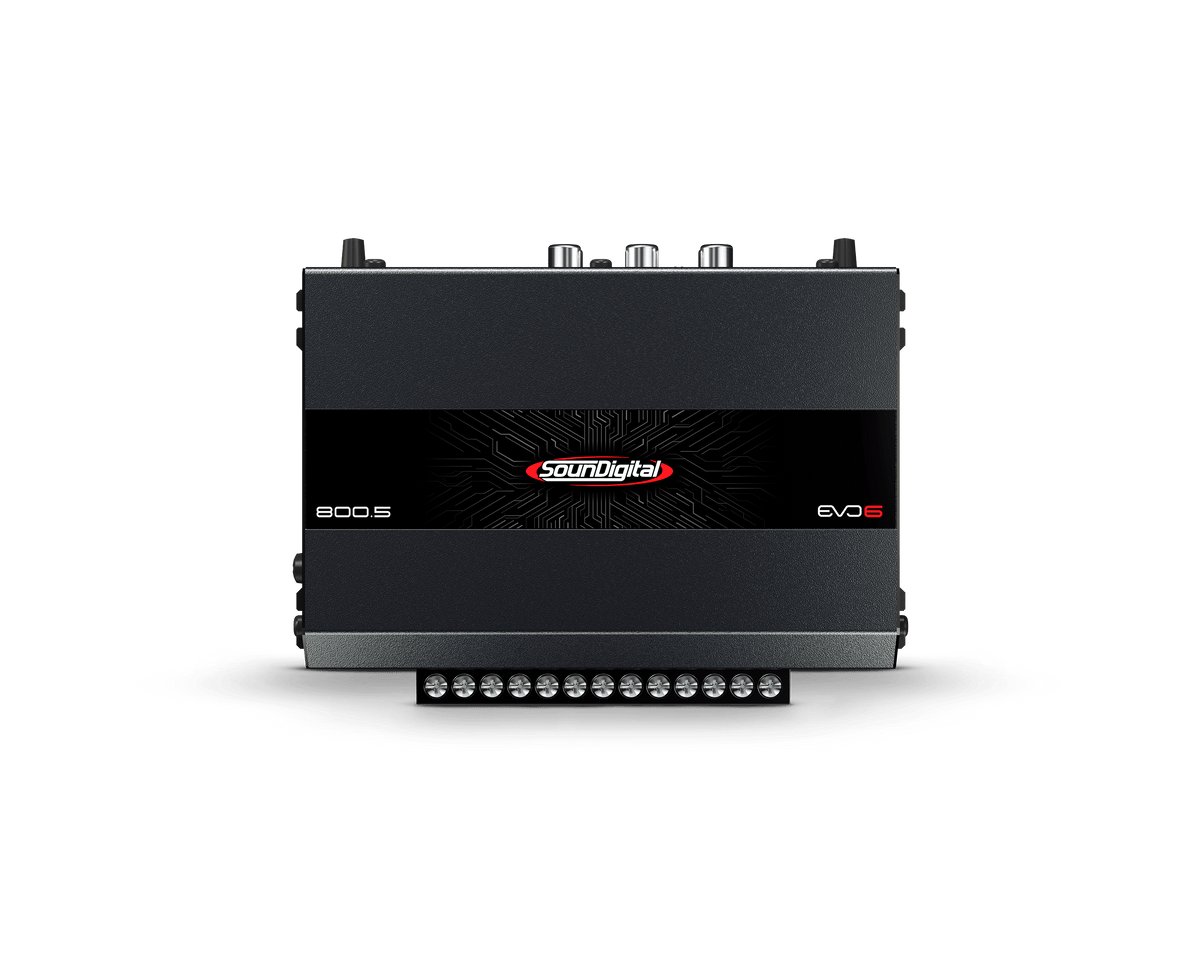

The SounDigital 800.5 EVO 6 is an ultra-compact 5-channel Class-D car audio amplifier delivering a total of 800 RMS power.
Power Output Specifications
4 x Channels @ 4Ω: 4 x 100W RMS
4 x Channels @ 8Ω: 4 x 66W RMS
Bridge Power @ 8Ω: 2 x 200W RMS
Subwoofer Channel @ 4Ω: 1 x 400W RMS
Audio & Performance Specs
Frequency Response (Channels 1–4): 80 Hz ~ 25 kHz (-3dB)
Subwoofer Frequency Response: 5 Hz ~ 80 Hz (-3dB)
Crossover Filters (12 dB/octave): Fixed High-Pass Filter (HPF) at 80 Hz; Fixed Low-Pass Filter (LPF) at 80 Hz
Signal-to-Noise Ratio (SNR): 103.88 dB (Channels 1–4), 102 dB (Subwoofer)
Input Sensitivity: 0.2V ~ 2V (RCA), 2V ~ 20V (High-level input)
Damping Factor: > 200 (@ 100 Hz nominal impedance)
Total Efficiency: 80%
Electrical & Physical Requirements
Operating Voltage: 9V ~ 16V
Current Draw (Music): 39A
Current Draw (Max): 78.7A
Recommended Fuse: 40A (Music)
Minimum Battery Capacity: 60Ah
Power Cable Gauge: 10 mm² (7 AWG)
Dimensions: 6.01" x 4.52" x 2.07" (15.7 cm x 11.7 cm x 5.5 cm)
Weight: 0.74 kg (1.63 lb)
