Soundigital Evo 6 400.4
Soundigital Evo 6 400.4
Precio habitual
$89.99 USD
Precio habitual
Precio de oferta
$89.99 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro

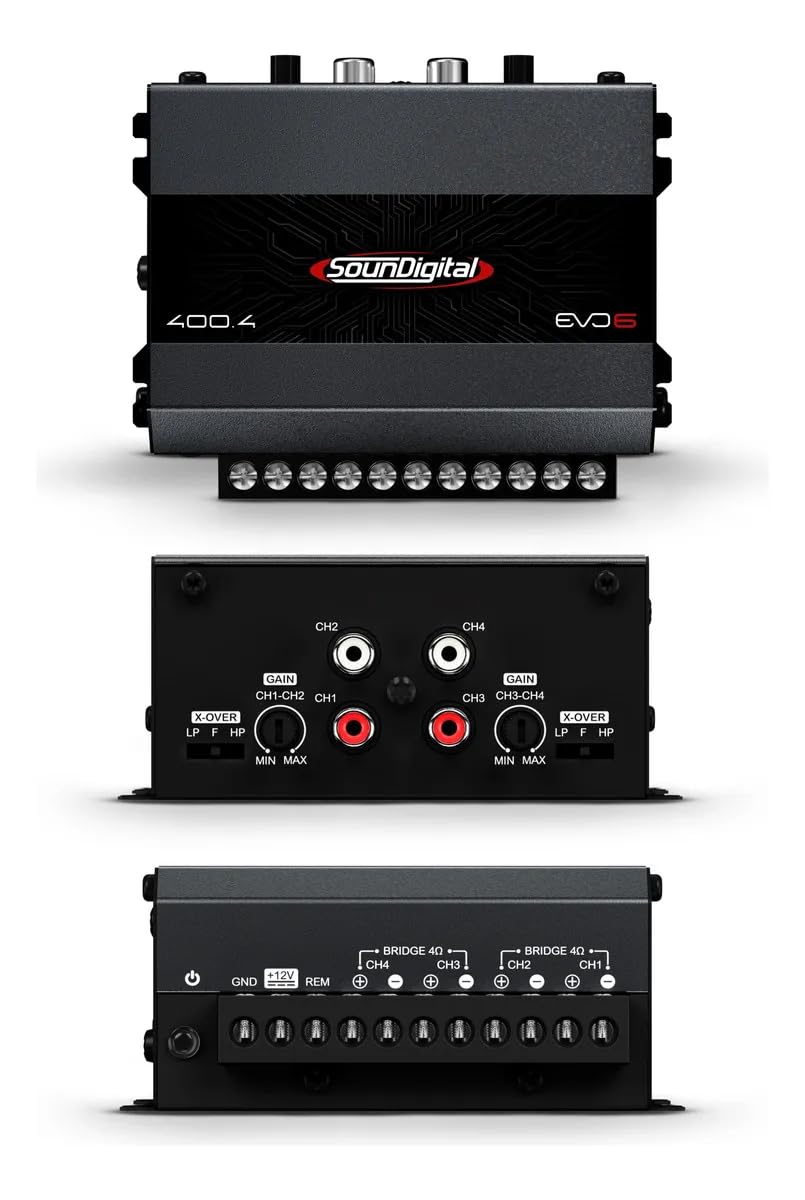

The SounDigital 400.4 EVO 6 is an ultra-compact 4-channel class-D car audio amplifier delivering a total of 400 RMS.
Power Output Specifications
Power @ 4Ω: 4 x 66W RMS
Power @ 2Ω: 4 x 100W RMS
Bridge Power @ 4Ω: 2 x 200W RMS
Audio & Technical Performance
Frequency Response (-3 dB): 8 Hz ~ 20 kHz
Crossover Filters (12 dB/octave): High-Pass (HPF) at 80 Hz / Low-Pass (LPF) at 80 Hz
Signal-to-Noise Ratio (SNR): 94 dB
Input Sensitivity (RCA): 0.2V ~ 2V
Damping Factor (@ 100 Hz nominal impedance): 200
Total Efficiency: 78%
Electrical & Physical Specs
Operating Voltage: 9V ~ 16V
Current Draw (Music): 20A
Current Draw (Max): 40.5A
Recommended Fuse (Music): 25A
Minimum Battery Capacity: 40Ah
Power Cable Gauge: 6 mm² (9 AWG)
Speaker Cable Gauge: 2 x 1.5 mm² (15 AWG)
Dimensions (W x L x H): 3.4" x 4.2" x 1.8" (8.6 cm x 10.7 cm x 4.6 cm)
Weight: 0.963 lb (0.437 kg)
