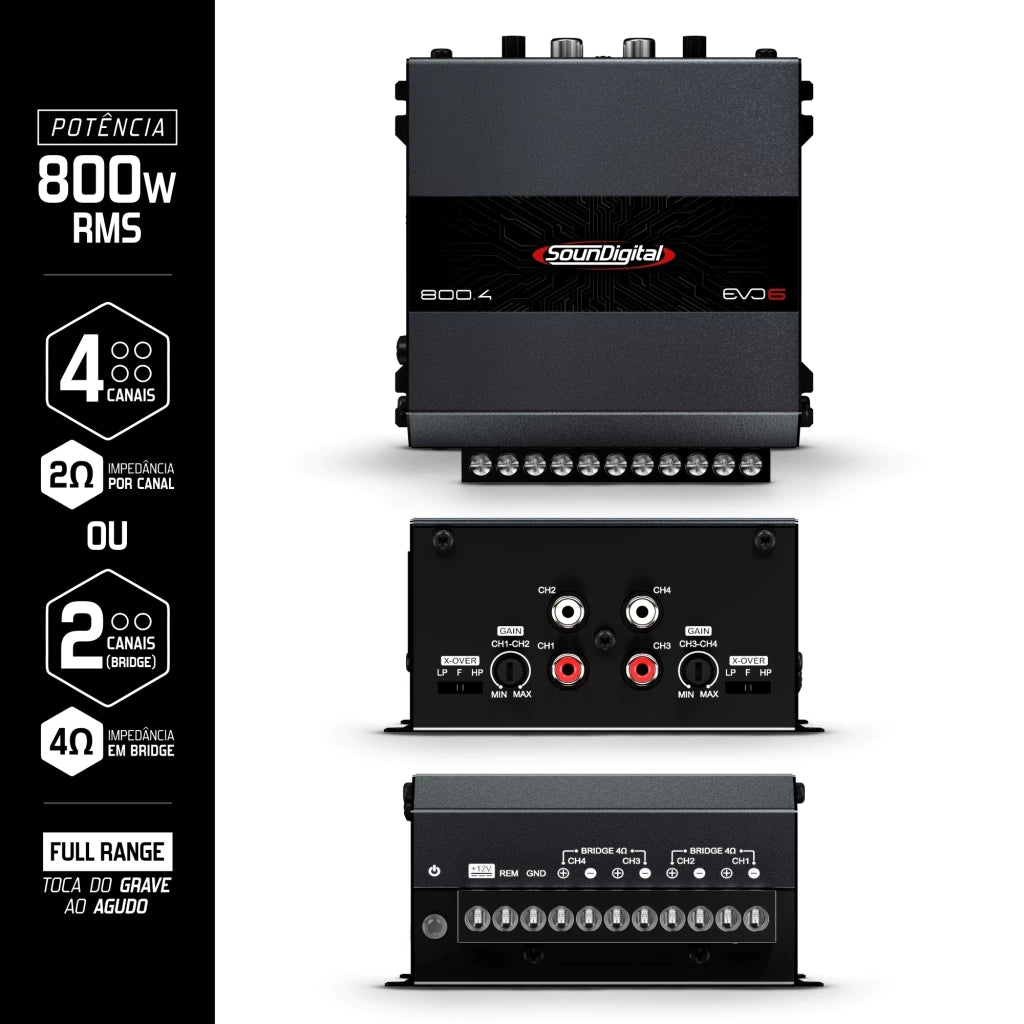

The SounDigital 800.4 EVO6 is an ultra-compact 4-channel Class D car audio amplifier delivering up to 800 RMS of total power.
Power Output Specifications (4-Ohm Version)
Power @ 4Ω: 4 x 132W RMS
Power @ 2Ω: 4 x 200W RMS
Bridge Power @ 2Ω: 2 x 400W RMS
Audio & Performance Specs
Frequency Response (-3dB): 5Hz ~ 20kHz
Signal-to-Noise Ratio (SNR): 93dB
Crossover (12dB/octave): High Pass Filter @ 80Hz & Low Pass Filter @ 80Hz
Input Sensitivity (RCA): 0.2V ~ 2V
Damping Factor (@ 100Hz nominal impedance): ≥200
Total Efficiency: 80%
Electrical & Physical Specifications
Operating Voltage: 9V ~ 16V
Current Draw (Music): 39A
Current Draw (Max/Resistive Load): 78.7A
Recommended Fuse (Music): 40A
Minimum Recommended Battery: 60Ah
Power Wire Gauge: 10 mm² (7 AWG)
Speaker Wire Gauge: 2 x 2.5 mm² (13 AWG)
Dimensions: 4.4" x 4.2" x 2.0" (11.2 cm x 10.7 cm x 5.2 cm)
Weight: 0.609 kg (1.342 lbs)
